| Categor¨ªa actual£ºMini Circuit Breaker, Moulded Case Circuit Breaker |
|

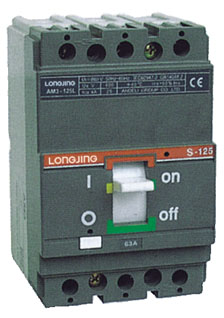

| S Series Moulded Case Circuit Breaker |
|
|
|
 Resumen de productos |
S series moulded case circuit breaker, it`s applicable circuit of AC 50Hz (or 60Hz), rated insulation voltage 690V(S-125 500V), rated operating voltage AC 390V or below, rated operating current 12.5-1600A, for distribute energy of electric and infrequent making and breaking
circuit in normal condition. The circuit-breakers are provided with the function of the protection
against overload and short circuit and under-voltage. The circuit breakers comply with standard
of IEC60947-2. The circuit-breakers are double insulating (lnm=250A or above), the control
circuit of the accessories is set apart with the main circuit, and doesn't need to open the cover
of the circuit-breaker when install the accessories. |
| Descarga de documentos |
 P¨²lselo para descargar los datos detallados de productos(Formato de PDF)
Nota de descarga£º
1. Datos detallados de productos son documentos de PDF
2. Si no se puede abrir los documentos despu¨¦s de abrirlos, por favor instale Lector de PDF primero.
3. Se recomienda usar herramienta de descarga o ¡ä¡äGuardar como¡ä¡ä cuando se necesita descargar
 erramienta de exploraci¨®n de PDF: P¨²lselo para descargar |
|
|
|
|
 |
| | | | | | |
